Concrete Tie Rod Ultimate Test In Wellmade - Special 42CrMo High Strength Cold Rolled Tie Bars for Construction

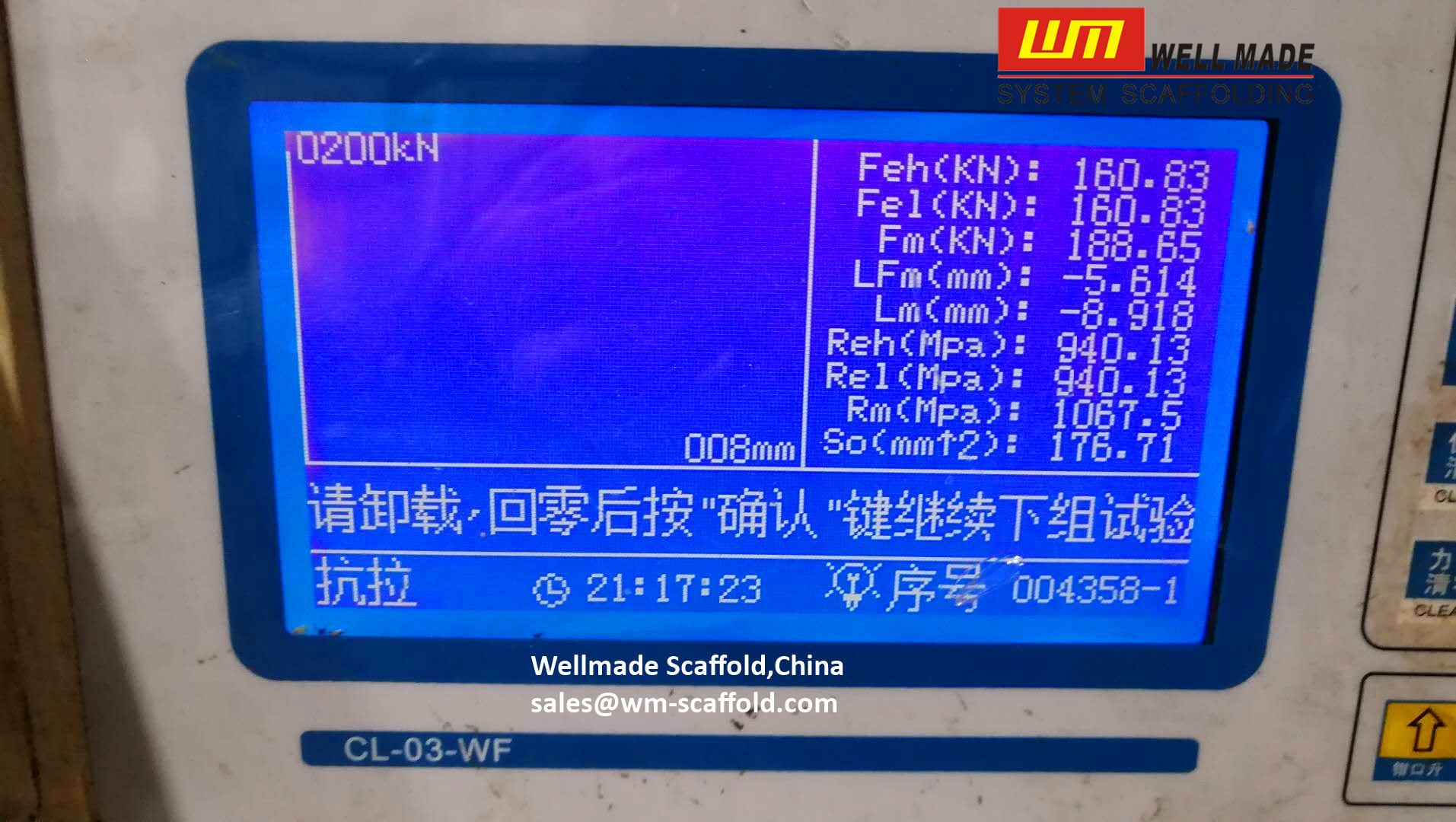

 Wellmade is formwork tie rods manufacturer in China. This is tie rod is made by special steel grade called 42 CrMo. It is a type of very high strength steel. The ultimate test result is 188 KN. Which is almost same as 190KN.

190 KN is dywidag bar loading capacity requirement. In order to reach this load and tensile, dywidag bars are manufactured in hot rolled, made from steel grade 900/1100

Wellmade produce dywidag bars in sizes of DW 15 and DW 20. More than 42 CrMo cold-rolled tie rod. We also have normal steel grade 450 and 235. You can choose and consult from us the test result if needed.

More information, prices and relative details are able by mail sales@wm-scaffold.com


construction concrete tie rod in test - formwork tie bar rebars - dywidag bars

construction concrete tie rod in test - formwork tie bar rebars - dywidag bars

construction concrete tie rod in test result- formwork tie bar rebars - dywidag bars
