Steel Formwork Concrete Wall Panels Metal Shuttering Panel

Steel Formwork Concrete Wall Panels

Steel Formwork Concrete Wall Panels include Flat Wall Panels, Internal Wall Panels and External Wall Panels is used for wall formwork and column formwork concrete. e
Steel Wall Panels Flat Panel is in standard size of 100mm-600mm width and height is customized with painted finishing. Wall Panel internal and external panels are in standard Size of 150mm width.
 Steel Wall Panels are connected by formwork u clips, form ties, formwork washer and formwork tie rod.
200mm width steel flat panels metal concrete wall panel system

formwork wall panels concrete steel panel

formwork wall panels concrete steel panel in painting

formwork wall panel in painting

formwork wall panels after paiting for concrete formwork panel system

formwork wall panel internal wall panels

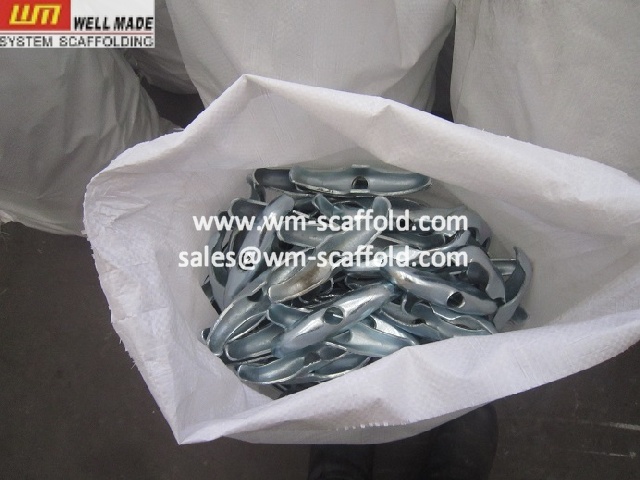

formwork form tie washer

formwork concrete external wall panels steel concrete panels

formwork wall panel system u clip

formwork push pull props

formwork tie rod conrete tie bar
